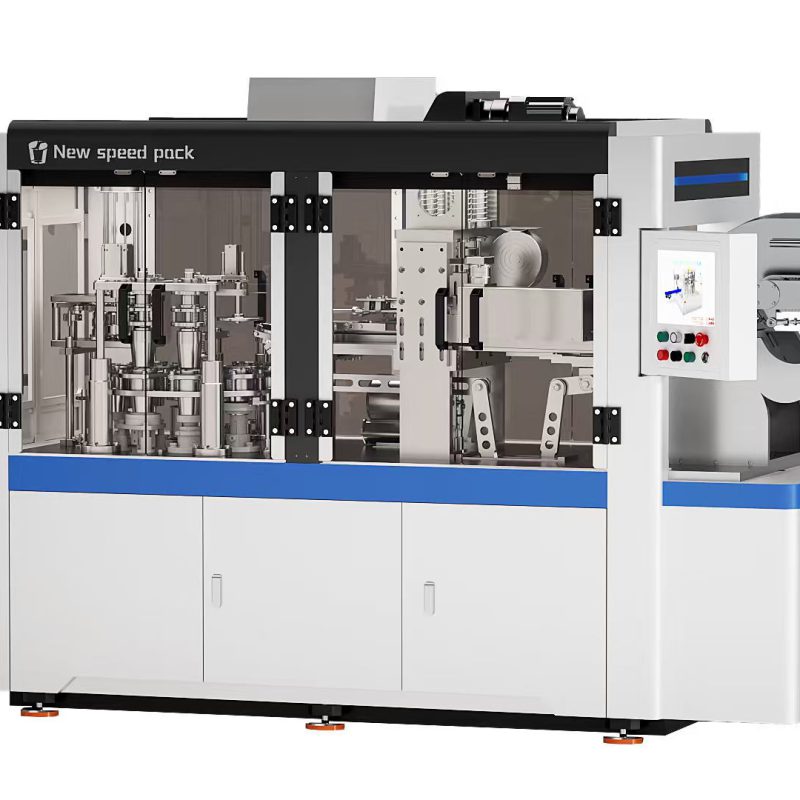

NSP16-150WT
| Model | NSP160-150WT |
| Weight | 2600kg |
| Machine encasement dimension | 3000x1200x2000mm（L*W*H） |
| Rated power | Three-phase , 380V , 50Hz/60Hz , 5kW |
| Compressed air | 0.6-0.8MPa,0.4m3/min |
| Max. Capacity | Hollow/Appressed:150cups/min Corrugated:120cups/min Embossed:80cups/min |
| Paper materials | Gray Board / White Board / PE Long Fiber/PE Paper |
| Paper thickness | 0.2825-0.4075mm |
| Product range | (D1)ф70-95mm(H)60-135mm (D2)ф50-75mm(h)5-12mm |
Advantage Introduction
- Desktop split layout, with separate forming and transmission areas, ensuring a clean and tidy structure, easy to clean and maintain.
- Full-range spray lubrication, ensuring smooth transmission, wear resistance, and worry-free later maintenance.
- Standard configuration with imported Fuji electrical core components, featuring high quality, durability and long service life, ensuring stable
- PLC intelligent central control + full-process photoelectric tracking, achieving fully automated and precise control, with stable and reliable operation.
- Desktop-stype Forming Mold Design enables easy assembly and disassembly, simplifying daily cleaning and maintenance.
- Servo glue spraying, cup separating and water glue system linkage, flexible and stable operation, strong adaptability.
Servo Main Motor + Mechanical Cam Dual Optimal Structure
Servo Cup Separating Mechanism
Servo-Driven Glue Throwing Mechanism
Servo Closed-Loop Ultrasonic Side Sealing System
Product Introduction
Application Scope: Suitable for 2.5–16oz paper cups with outer sleeves, hollow/flat/wavy paper cups, hot drink cups, noodle bowls, coffee cups, etc.
