| Model | NSP16-170 |
| Machine encasement dimension | 3000 x 1600 x 2250mm |
| Cup counting holder packing specifcation | 1250 x 700 x 1900mm |
| Power | Three-phase 50hz, 380V, 20KW |
| Compressed air | 0.6-0.8MPa, 0.5m³/min |
| Max Capacity | 170pcss/min |
| Paper materials | Single PE/Double PE/PLA |
| Paper grams | 150-350g/㎡ |
| Product range | (D1) Top diameter 60-95mm (H) Height 50-135mm (D2) Bottom diameter 40-75mm (h) Bottom depth 5-12mm |
Mechanical Quality Guarantee
1. Mechanical parts warranty 5 years, electrical parts and quick-wear parts warranty 1 year.
2. All parts on the table are easy for maintenance.
3. All parts under table are lubricated by oil. Oil should be changed every 4-6 months with specified oil.
Production Efficiency
1. Production output up to 81,600 cups per shift (8 hours), up to 7.3 million cups per month (3 shifts).
2. Under normal production, the pass rate is is higher than 99%.
3. With packing machine, one operator can handle several machines at the same time.
Rotary Paper Suction
Hot Air + Servo Ultrasonic for side sealing
Double hot air for bottom sealing
Nine-Station Female mold + Tripple curling stations

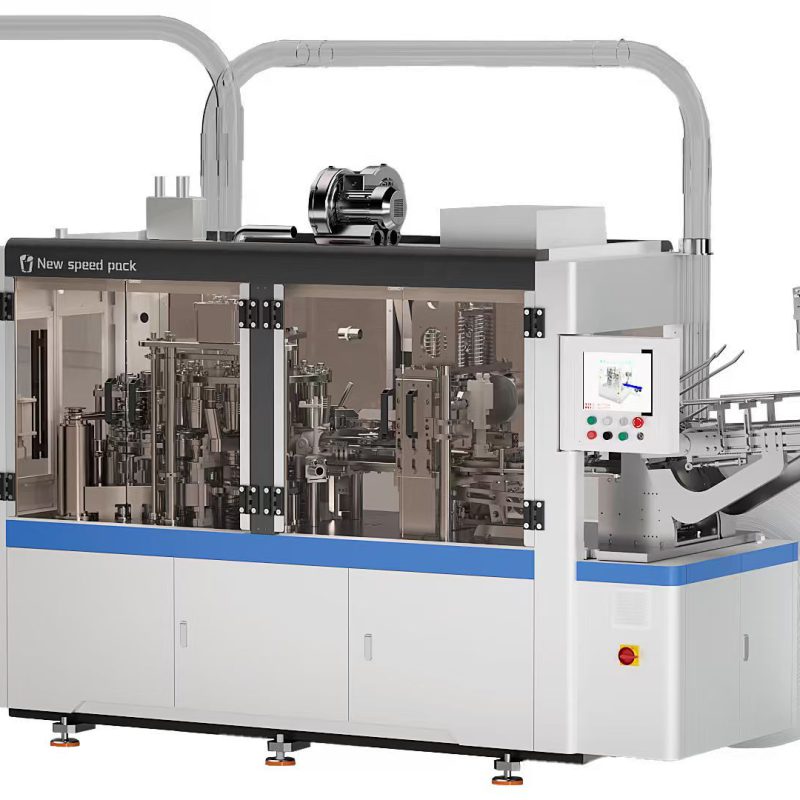

NSP16-170 high speed intelligent paper cup machine is a new generation of intelligent and efficient paper cup forming equipment. It features stable performance and long-lasting durability. Equipped with servo motors and motion control systems, it achieves stable, efficient and intelligent paper cup forming. The entire machine is controlled by PLC and monitored by full-process photoelectric tracking. It can be optionally equipped with a visual inspection system to remove defective products. This model is suitable for high grams, high-end hot/cold paper cups ranging from 5 to 16 oz, such as branded coffee cups and milk tea cups.
