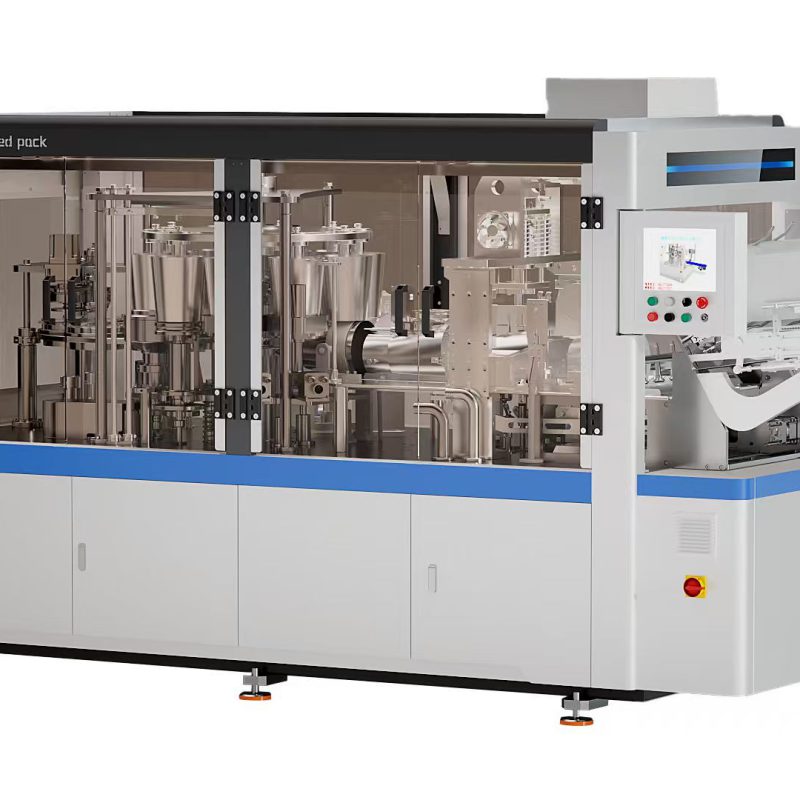

NSP160-80
| Model | NSP160-80 |
| Weight | 4500kg |
| Machine Packed Dimension | 3900x1900x2400mm（L*W*H） |
| Counting Rack Packed Dimension | 1230x720x1900mm（L*W*H） |
| Rated Power | Three-phase , 380V , 50Hz/60Hz , 35kW |
| Compressed Air | 0.6-0.8MPa,0.6m3/min |
| Max Capacity | 80cups/min |
| Paper Materials | Single PE, Double PE, PLA, Bio Paper |
| Paper Thickness | 0.3825-0.5325mm |
| Cup Specifications | (D1)ф150-200mm(H)60-200mm (D2)ф100-160mm(h)7-12mm |
Advantage Introduction
- Desktop Isolated Layout with built-in transmission in the frame, featuring reasonable zoning, dustproof design and easy maintenance.
- Servo Main Drive + Index Cam Composite Transmission, with sufficient power and high operation precision.
- Full-Range Spray Lubrication System reduces component wear, extending the equipment’s overall service life.
- Full-Process Photoelectric Tracking + Servo Bottom Paper Feeding, with high automation and stable operation.
- Servo In-Line Paper Feeding + Ultrasonic Sealing, ensuring flat and firm seals with consistent forming.
- Optional visual inspection and waste rejection system automatically sorts defective products, saving time and labor.
- Dual-Turntable structure with 10 male molds and 8 female molds, enabling multi-station forming and compatibility with various paper types.
- Imported Fuji electrical core components ensure stable and reliable product quality from the source.
Eight-Station Female Mold + Triple Curling Stations
Servo Main Motor + Mechanical Cam Dual Optimal Structure
Integrated Cylindrical Indexing Cam Compound Transmission System
Servo Closed-Loop Ultrasonic Side Sealing System
Product Introduction
This machine is professionally designed for producing 34-44oz (1000cc-1300cc) large capacity salad bowls and fast-food takeaway paper bowls. It can also steadily manufacture 65-170oz KFC-style large food buckets, popcorn buckets, snack paper buckets and other large-size paper containers.
