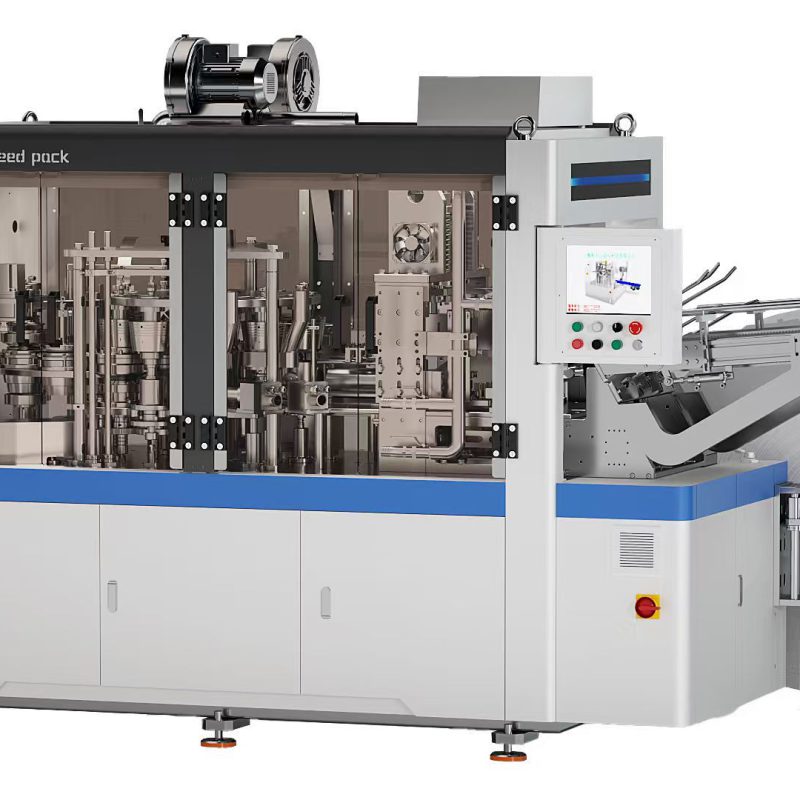

NSP45-120
| Model | NSP45-120 |
| Weight | 3500kg |
| Machine Packed Dimension | 3100x1700x2300mm（L*W*H） |
| Counting Rack Packed Dimension | 1230x720x1900mm（L*W*H） |
| Rated Power | 三相, 380V, 31KW |
| Compressed Air | 0.6-0.8MPa,0.6m3/min |
| Max Capacity | 120cups/min |
| Paper Materials | Single PE/Double PE/PLA |
| Paper Thickness | 0.2825-0.445mm |
| Cup Specifications | (D1)ф100-145mm(H)50-110mm (D2)ф80-115mm(h)5-12mm |
Eight-Station Female Mold + Triple Curling Stations
Servo Main Motor + Mechanical Cam Dual Optimal Structure
Integrated Cylindrical Indexing Cam Compound Transmission System
Servo Closed-Loop Ultrasonic Side Sealing System
Advantage Introduction
- Desktop-style classic structure layout with a compact and neat footprint, ideal for workshop placement.
- Servo main drive with cam-gear composite transmission ensures precise motion control and low noise operation.
- Professional curling process delivers a smooth, rounded bowl rim with a curling angle ≥ 420°, for superior forming quality.
- PLC-based central control with full-process photoelectric monitoring, servo-driven bottom paper feeding, flexible debugging and stable operation.
- Dual-turntable forming with 10 male molds and 8 female molds delivers consistent dimensions and wide paper adaptability.
- Full-range spray lubrication keeps components wear-resistant and durable, lowering operation and maintenance costs.
- Optional visual inspection system enables intelligent rejection of defective products, ensuring high finished product yield.
- Imported Fuji core electrical components, ensuring stable overall performance and reliable long-term mass production.
Product Introduction
Application Scope: Suitable for producing 450cc–750cc salad bowls and 12–26oz small ice cream cups.
